TIB 080-148

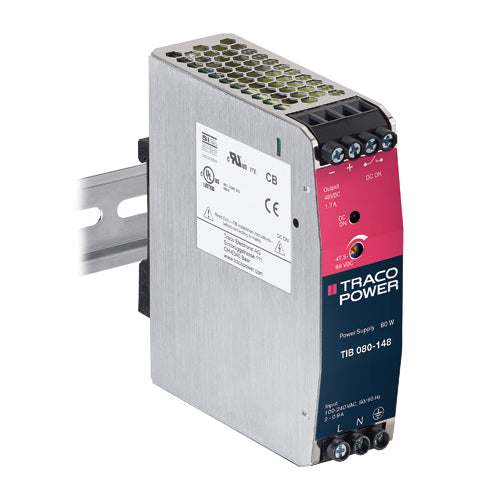

48V 1.7A, 48 Volt DIN Rail Power Supply UL508 Industrial Control Peak CurrentManufacturer: TRACO Power
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.7 Amps
Output Peak Current:
2.55 Amps
Max Power:
80 Watts
Known Country of Origin:
China
Features
TRACO Power TIB 080-148 slim profile DIN rail power supply
AC input range: 85~264Vac
Operating temperature range: -40~+70°C
Safety approvals: UL/IEC/EN 60950-1, UL 508
Railway applications shock and vibration according to EN 61373
Adjustable output voltage
Built-in active PFC
Alternative side-mounting for flat panels
Back power immunity
Peak current up to 150% for 4 seconds
DC OK LED indicator
Standard protections: over load / short circuit
TRACO Power 3 year warranty
TIB 080-148
48V 1.7A, 48 Volt DIN Rail Power Supply UL508 Industrial Control Peak CurrentManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
85~264Vac
Output Voltage:
48Vdc
Output Max Current:
1.7 Amps
Output Peak Current:
2.55 Amps
Max Power:
80 Watts
Known Country of Origin:
China
Features
