Power Worth Searching For

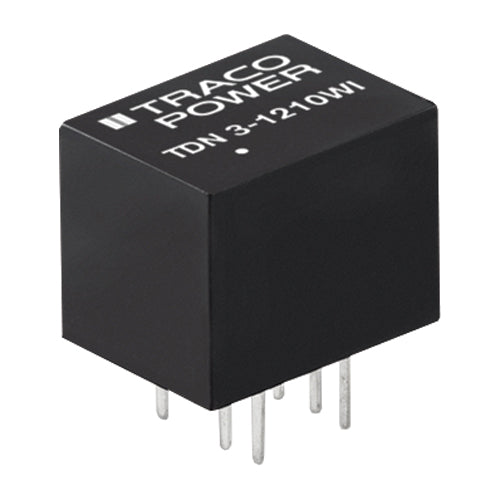

TDN 3-1213WI
15Vdc 0.2A, DC-DC Converter DIP-8 Package 4:1 Input RangeManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$26.91
10
$23.14
25
$22.84
100
$20.02
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
4.5~18Vdc
Output Voltage:
15Vdc
Output Max Current:
0.2 Amps
Max Power:
3 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TDN 3-1213WI DC/DC converter
Ultra wide 4:1 input voltage range
DIP-package type
Operating temperature: -40~+70°C without derating
Ultra compact size: 13.2 x 9.1 x 10.2mm
I/O isolation 1600Vdc
Fully regulated output
Short-circuit protection
Remote On/Off
TRACO Power 3 year warranty
