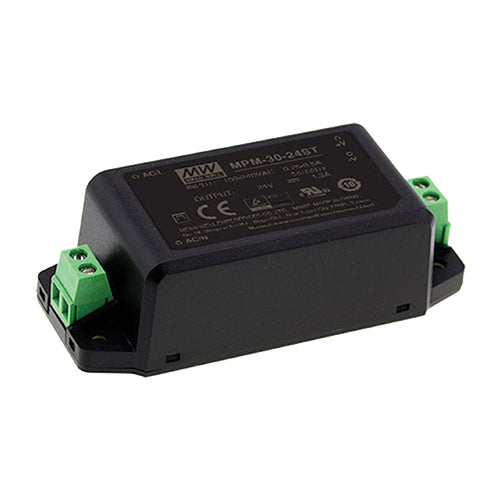

MPM-30-24ST
24Vdc 1.3A Medical Power Supply, Screw Terminal Type, EncapsulatedManufacturer: MEAN WELL
View Data Sheet
In Stock: 20 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.3 Amps
Output Peak Current:
1.5 Amps
Max Power:
31 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -40~+85°C
Medical safety approvals: ANSI/AAMI ES 60601-1 & IEC/EN 60601-1
2xMOPP
Extremely low leakage current <80µA
Suitable for BF applications
Low no load power consumption <0.075W
Class II (No FG)
No minimum load required
Withstand 5G anti-vibration
Protections: short circuit /over load / over voltage
MEAN WELL 3 year warranty
