LD20-23B24R2

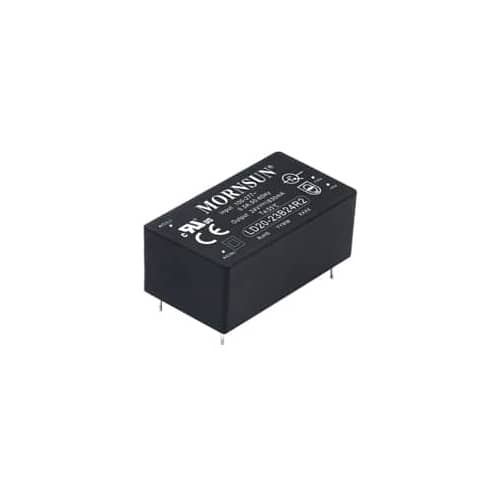

24 Volt Power Supply PCB Mount 24 Volts 0.83 AmpsManufacturer: Mornsun
View Data Sheet
In Stock: 200 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~305Vac
Output Voltage:
24Vdc
Output Max Current:
0.83 Amps
Max Power:
20 Watts
Known Country of Origin:
China
Features
MORNSUN LD20-23B24R2 encapsulated on-board type power supply
AC input range: 85~305Vac
Operating temperature range: -40~+85°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
No load power consumption ≤0.1 Watt
Operation up to 5000m altitude
Optional DIN Rail mounting available
Overvoltage category III
Protections: short circuit / overcurrent / overvoltage
Mornsun 3 year warranty
