TIW 12-115
15Vdc 0.8A, 15 Volt Power Supply UL 1310, Class 2 IP67Manufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
93~264Vac
Output Voltage:
15Vdc
Output Max Current:
0.8 Amps
Max Power:
12 Watts
Known Country of Origin:
China
Features

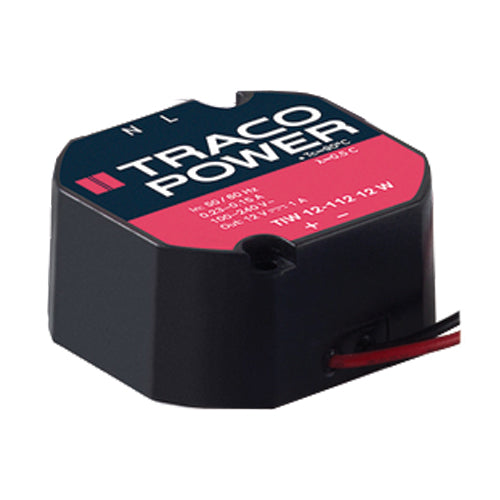

TRACO Power TIW 12-115 encapsulated, wall-mount AC/DC power supply
AC input range: 93~264Vac
Operating temperature range: -25~+50°C
Safety approvals: UL/IEC/EN 60950-1, IEC/EN 60335-1, UL 1310, EN 50178
Class II power unit
IP67, fully encapsulated plastic case
No load power consumption: <3W
Regulated output voltage
Fits in the standardized in-wall flush boxes or can be directly wall-mounted
Approved for mounting onto wood or materials with unknown flammability
Protections: over load / short circuit / over temperature
TRACO Power 3 year warranty
