TML 20512

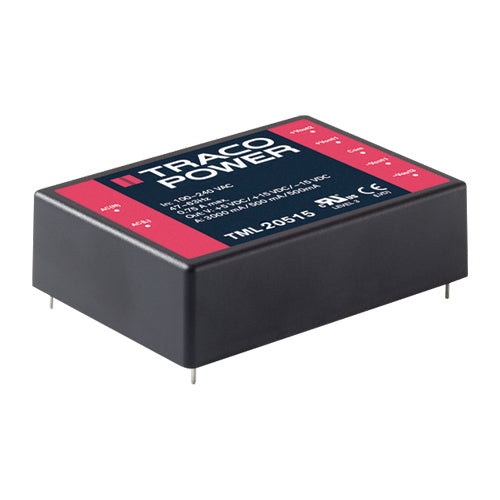

5V, 12V, -12V, PCB Mounting Power Supply Triple Output EncapsulatedManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
2.8 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
0.25 Amps
Output Voltage #3:
-12Vdc
Output #3 Max Current:
0.25 Amps
Max Power:
20 Watts
Known Country of Origin:
Taiwan
Features
TRACO Power TML 20512 compact, encapsulated industrial power supply
Universal AC input range: 90~264Vac @47~440Hz
Operating temperature: -25~+70°C
Safety approvals: UL/cUL 60950-1 & IEC/EN 60950-1
EMI meets EN 55022, class B and FCC, level B
PCB mount
Protections: short circuit / over temperature / over voltage
TRACO Power 3 year warranty
