TMP 15105C
5Vdc 3A, 5 Volt Power Supply EncapsulatedManufacturer: TRACO Power
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
5Vdc
Output Max Current:
3 Amps
Max Power:
15 Watts
Known Country of Origin:
Taiwan
Features

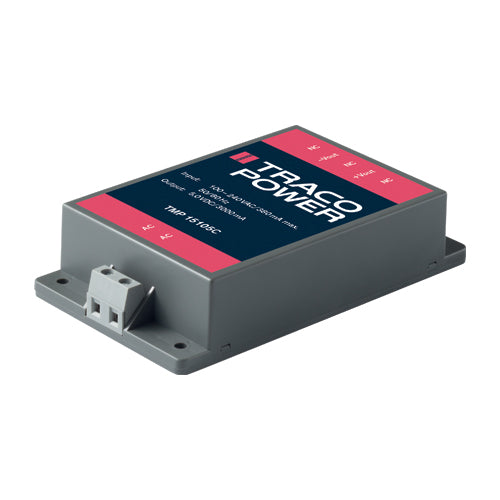

TRACO Power TMP 15105C encapsulated power supply with screw terminals
Universal AC input range: 85~264Vac
Operating temperature: -25~+70°C
Safety approval: IEC/EN 60950-1 & UL 60950-1
UL 508
Protection class II
Optional DIN rail mount adaptor
Fully encapsulated low profile plastic casing
Protections: short circuit / over voltage / over load / over temperature
TRACO Power 3 year warranty
