TMP 15515
5V, 15V, -15V, PCB Mounting Power Supply Triple OutputManufacturer: TRACO Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
2 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
0.15 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
0.15 Amps
Max Power:
15 Watts
Known Country of Origin:
Taiwan
Features

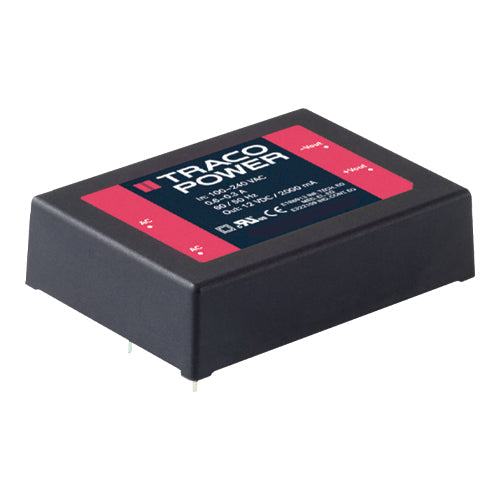

TRACO Power TMP 15515 ultra compact PCB mount AC/DC power supply
Universal AC input range: 85~264Vac
Operating temperature: -25~+70°C
Safety approval: IEC/EN 60950-1 & UL 60950-1
Protection class II
Fully encapsulated low profile plastic casing
Protections: short circuit / over voltage / over load / over temperature
TRACO Power 3 year warranty
