TMPW 5-105-J
5Vdc 1A, 5V Chassis Mount Power Supply Chassis Mount, Encapsulated 5 Volts 1 AmpManufacturer: TRACO Power
View Data Sheet
In Stock: 7 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage:
5Vdc
Output Max Current:
1 Amps
Max Power:
5 Watts
Known Country of Origin:
Taiwan
Features

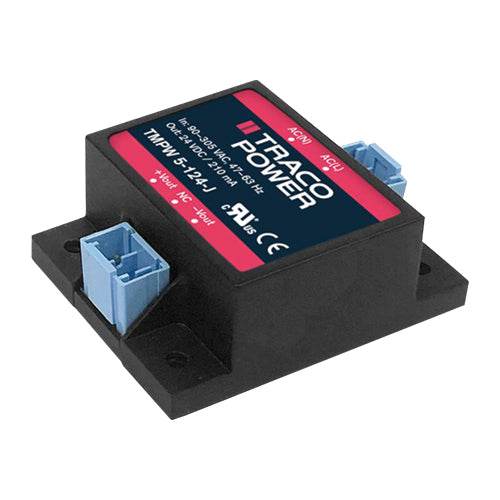

TRACO Power TMPW 5-105-J chassis mount AC/DC power supply
Wide AC input range: 90~305Vac
Operating temperature: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Protection class II
Low leakage current <250µA
Fully encapsulated power supply with plastic casing
No load power consumption <0.1 Watts
Operation up to 5000m altitude
Protections: short circuit / overvoltage
TRACO Power 3 year warranty
