Power Worth Searching For
TMPW 5-105-T

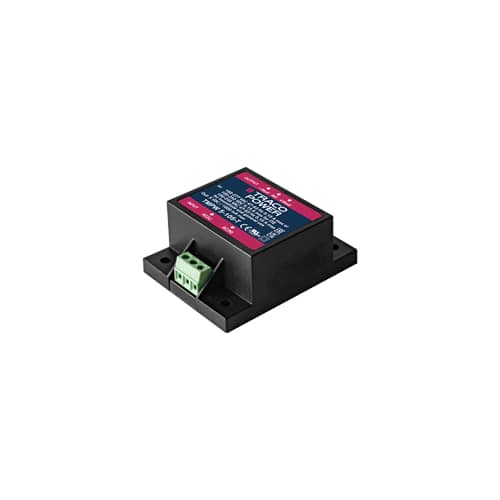

5V Chassis Power Supply, Chassis Mount, EncapsulatedManufacturer: TRACO Power
View Data Sheet
In Stock: 30 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage:
5Vdc
Output Max Current:
1 Amps
Max Power:
5 Watts
Known Country of Origin:
Taiwan
Features
5 watt, chassis mount AC/DC power supply
Wide AC input range: 90~305Vac
Operating temperature: -40~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
EN 55032 class B (internal filter)
Protection class I and II prepared
Output touch current <250µA
I/O Isolation 4000Vac
Fully encapsulated power supply with plastic casing
No load power consumption <0.1 Watts
Operation up to 5000m altitude
Protections: short circuit / overvoltage
Overvoltage category II
TRACO Power 3 year warranty
TMPW 5-105-T
5V Chassis Power Supply, Chassis Mount, EncapsulatedManufacturer: TRACO Power
View Data Sheet
Specifications
Input Voltage:
90~305Vac
Output Voltage:
5Vdc
Output Max Current:
1 Amps
Max Power:
5 Watts
Known Country of Origin:
Taiwan
Features
In Stock: 30 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
