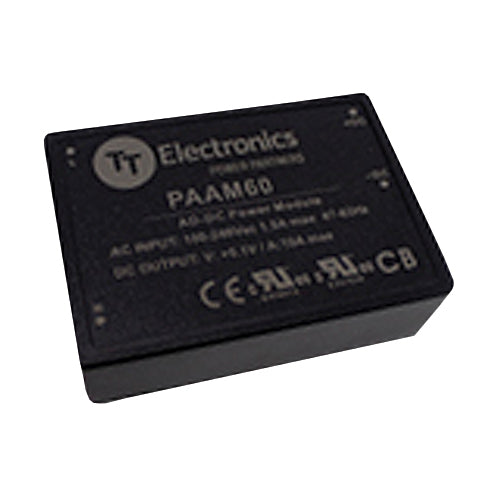

PAAM60-12
12Vdc Medical Power Supply Encapsulated 12 Volts 5 AmpsManufacturer: TT Electronics
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
12Vdc
Output Max Current:
5 Amps
Max Power:
60 Watts
Known Country of Origin:
Taiwan
Features
Power Partners PAAM60-12 encapsulated medical and ITE AC/DC power supply
AC input range: 90~264Vac
Operating temperature range: -40~+80°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Industrial safety certification: IEC 60950-1, UL 60950-1
Class II isolation
Low leakage current <0.1mA
Class B conducted & radiated emissions
I/O isolation 4000Vac
No load power consumption <0.3 watt
Operation up to 5000m altitude
Protections: overvoltage / overload / short circuit
TT Electronics 1 year warranty
