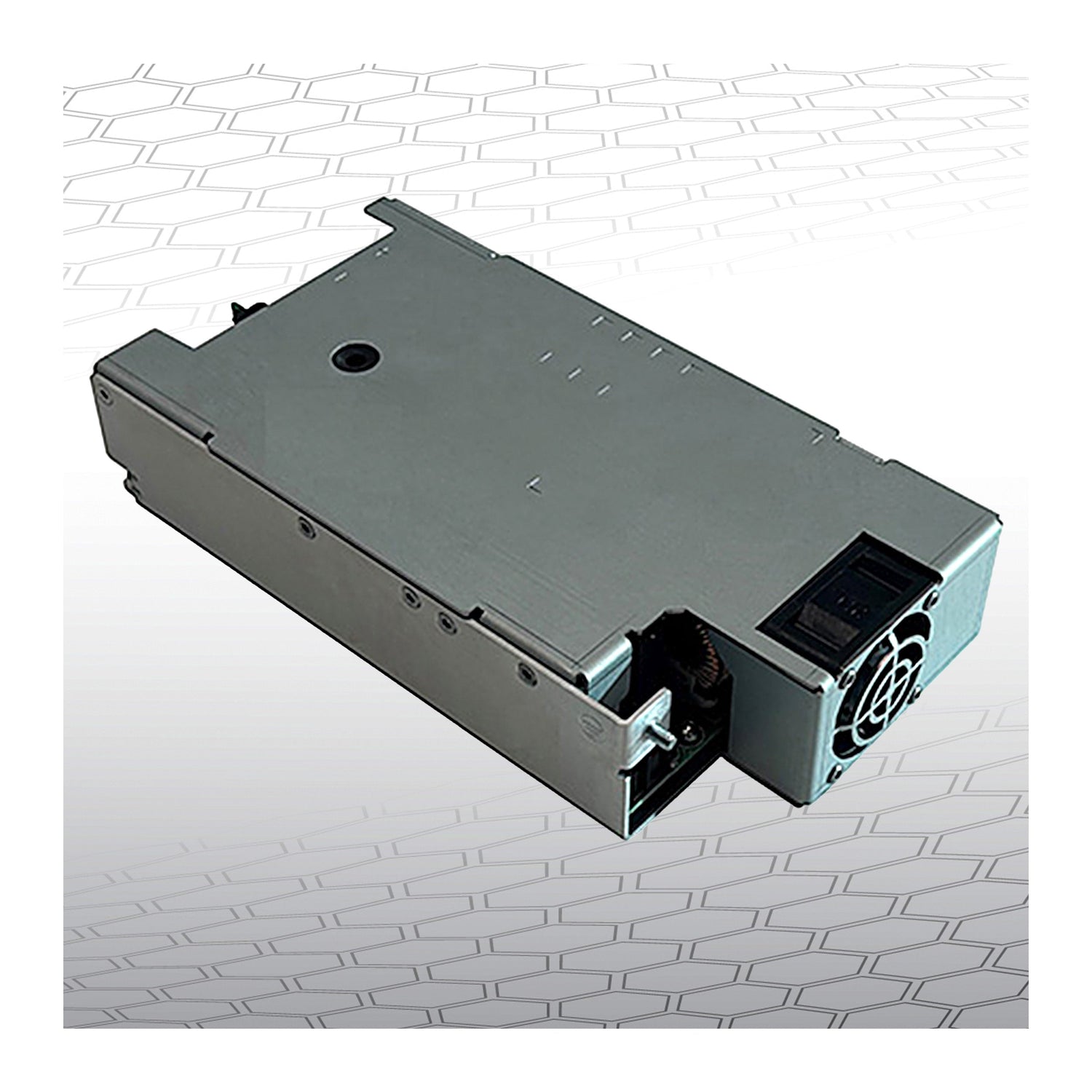

HDP1200 Series Medical & ITE Power Supplies

Designed to meet the stringent requirements of modern medical and ITE systems, the HDP1200 Series provides a steady 1200W output across a wide 180 to 305 VAC input range, with 24 VDC and 48 VDC standard output options. As outlined on page 1 of the datasheet, the enclosed U-channel chassis measures just 4.21 x 8.11 x 1.61 inches and integrates a digitally controlled front-mounted fan to ensure quiet operation while maintaining optimal airflow and long service life.

High typical efficiency of 95.5 percent reduces heat generation, simplifying thermal design and increasing overall system reliability. The HDP1200 Series includes advanced features such as active GaN-based power factor correction, a dedicated 5V standby output, remote on and off control, power-good signaling, and built-in current sharing for parallel operation. Comprehensive protection functions cover over-voltage, over-current, short circuit, and over-temperature conditions.

For safety-critical environments, the HDP1200 is certified to IEC 60601-1 3rd edition with 2x MoPP and is compatible with BF-rated medical equipment. It also meets IEC and UL 62368-1 for audio-video and IT applications and UL8750 for LED lighting. As shown in the applications section on page 1, the HDP1200 Series is ideally suited for medical imaging systems, laboratory equipment, industrial automation, telecommunications, video walls, and professional LED lighting installations.
