MDP1200-US48-FF

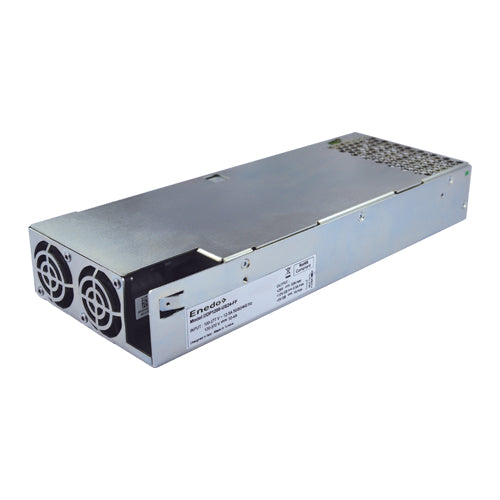

48Vdc Medical Power Supply Low Profile, Front Fan 48 Volts 25 Amps 1200 WattsManufacturer: Enedo
View Data Sheet
In Stock: 23 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
48Vdc
Output Max Current:
25 Amps
Max Power:
1200 Watts
Known Country of Origin:
Tunisia
Features
Efore MDP1200-US48-FF highly efficient medical power supply with built-in front fan
AC input range: 90~264Vac (low line de-rating)
Operating temperature: -20~+70°C
Safety approvals: ANSI/AAMI ES 60601-1 and IEC/EN 60601-1 3rd Edition
IEC 60601-1-2 4th Edition EMC compliant
2xMOPP
Suitable for BF applications
Low leakage current: <400µA
12V, 0.5A & +5V, 1A stand-by outputs (6 watts max combined power)
PMBus digital power-management protocol
Built-in PFC
Remote On/Off
PS-Inhibit and voltage adjustment
Built-in current sharing and OR-ing for parallel operation and N+1 redundancy
Power good and remote sense signals
1U low profile design
Fan speed control to minimize audible noise
Protections: over temperature / over voltage / over current / short circuit
Efore 5 year warranty
