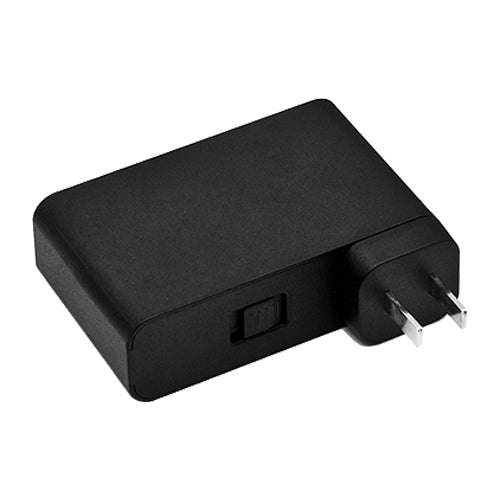

MDS-030AAC12 AB
12Vdc 2A, Wall Plug-In Adaptor Medical Type 12 Volts 2 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
12Vdc
Output Max Current:
2 Amps
Max Power:
24 Watts
Known Country of Origin:
China
Features
Medical wall plug-in power adaptor with interchangeable AC plugs
AC input range: 85~264Vac
Operating temperature range: 0~+40°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1, UL 60601-1
2xMOPP
Suitable for BF applications
Industrial safety certification: IEC 62368-1, UL/cUL 62368-1 Listed, UL 60950-1
Class II
Pass LPS
Energy Efficiency Level VI
Operation up to 5000m altitude
Interchangeable AC plugs (sold seperately)
DC plug type: 2.1 x 5.5 x 12mm center positive
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
