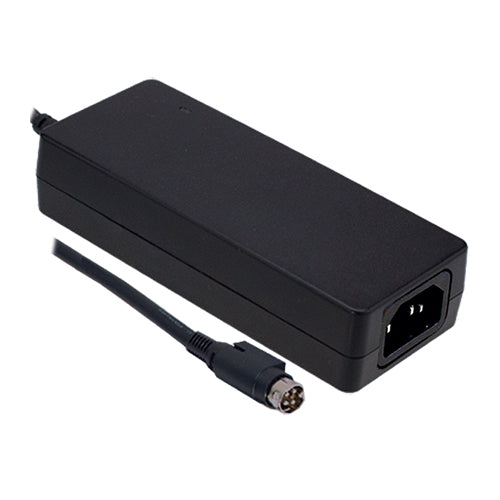

GSM120A48-R7B
48Vdc 2.5A; 18AWG/120cm,DIN 4PIN 48 Volt Desk Top Power Supply Medical, Class I 2xMOPPManufacturer: MEAN WELL
View Data Sheet
In Stock: 20 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
2.5 Amps
Max Power:
120 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP - Means of Patient Protection (between primary to secondary)
Energy efficiency Level VI
Low no load power consumption: <0.15W
Low leakage current<100uA
High efficiency
LED indicator for power on
AC inlet: IEC320-C14
DC output connector: 4 pin DIN with lock, outer shell is connected to AC FG, -V is not connected to AC FG
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
