GSM160B12-R7B

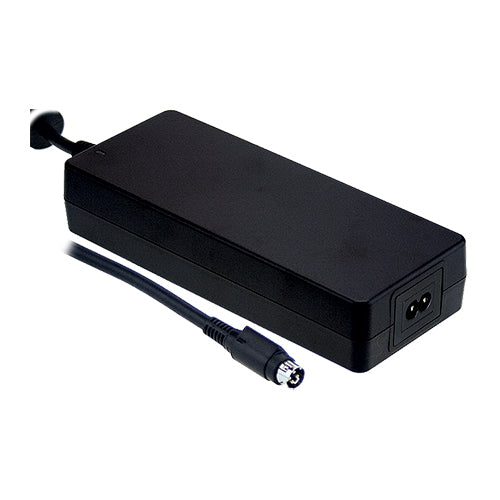

12Vdc 11.5A; 16AWGx4C/100cm,DIN 4PIN 12V Medical Power Supply Desktop, Class II 2xMOPPManufacturer: MEAN WELL
View Data Sheet
In Stock: 5 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
12Vdc
Output Max Current:
11.5 Amps
Max Power:
138 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
Medical safety approval: ANSI/AAMI ES60601-1 / ES60601-1-11
Meets EISA 2007
2 x MOPP (means of patient protection)
Low leakage current: <100µA
No load power consumption: <0.15W
Built in active PFC
LED indicator for power on
Energy Efficiency Level VI
AC inlet: IEC320-C8, 2 pole, Class II
Standard DC output connector: 4 Pin DIN
Optional locking type DC output connector available
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
