GSM60A15-P1J

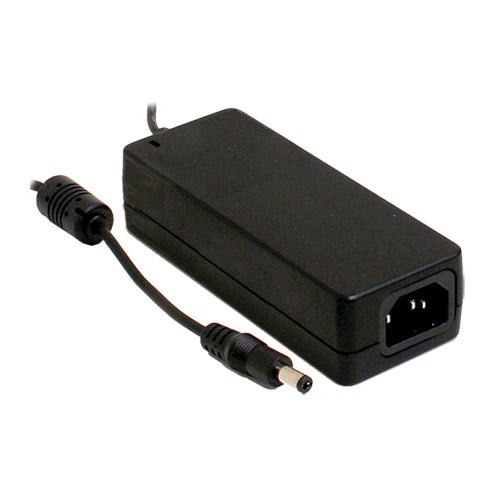

15V Medical Power Supply Desk Top 2xMOPPManufacturer: MEAN WELL
View Data Sheet
In Stock: 140 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
15Vdc
Output Max Current:
4 Amps
Max Power:
60 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+60°
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP - Means of Patient Protection (between primary to secondary)
Energy efficiency Level VI
Low no load power consumption: <0.1W
Low leakage current<100uA
High efficiency
LED indicator for power on
AC inlet: IEC320-C14
DC output connector: 2.1mm x 5.5mm, center positive, -V is connected to AC FG
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
