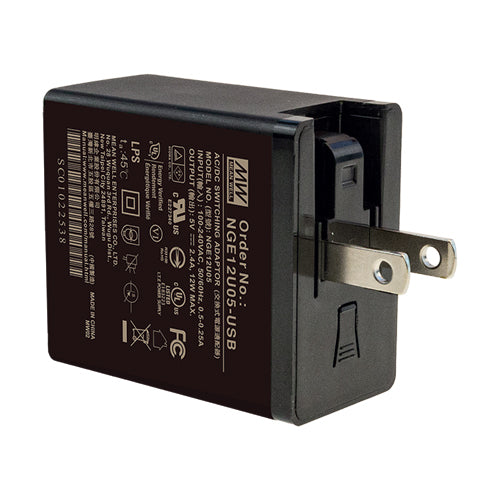

NGE12U05-USB
5V 2.4A Wall Plug-In Efficiency Level VI, Class II DC Plug Type: USB type AManufacturer: MEAN WELL
View Data Sheet
In Stock: 502 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
5Vdc
Output Max Current:
2.4 Amps
Max Power:
12 Watts
Known Country of Origin:
China
Features
Medical and Industrial USB Type A Wall Plug-In Adaptor with fixed 2 Pole USA Plug
AC input range: 80~264Vac
Operating temperature range: -30~+70°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
Industrial safety certifications: IEC/EN 62368-1, UL 62368-1
Complies with EISA 2007/DoE and EU ErP
Class II
Energy Efficiency Level VI
No load power consumption <0.075 Watts
Pass LPS
Low leakage current ≤100µA
DC plug type: USB Type-A
Protections: short circuit / overvoltage / overload
MEAN WELL 3 year warranty
