ALM85US19

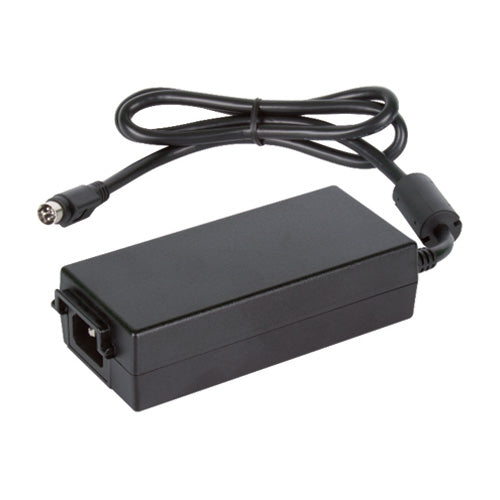

19Vdc 4.47A, Desk Top Power Supply, Medical & ITE ApprovalsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$85.12
5
$82.56
10
$80.00
25
$76.61
100
$71.50
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
19Vdc
Output Max Current:
4.47 Amps
Max Power:
85 Watts
Known Country of Origin:
Vietnam
Features
XP Power ALM85US19 medical and ITE desktop power supply
AC input range: 80~264Vac
Operating temperature: 0~+60°C
Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Safety approval: UL 62368-1 listed
Energy Efficiency Level VI
IP32
AC inlet: IEC 320-C14
DC plug type: 4 pin DIN
No load power consumption ≤0.15 Watts
Leakage current ≤250µA
Operation up to 5000m altitude
Protections: overload / overvoltage / short circuit / over temperature
XP Power 3 year warranty
