AMF36US30

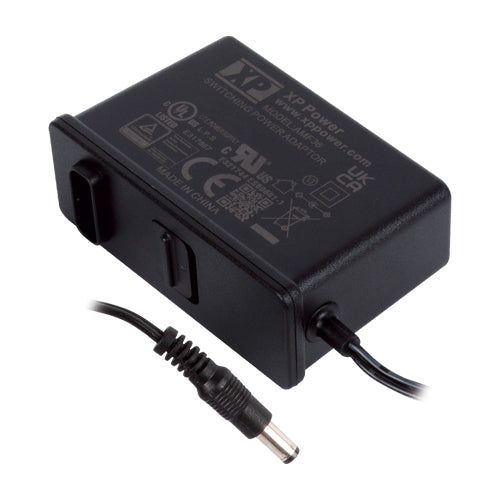

30Vdc 1.2A, 36Vdc Wall Plug-In Adaptor, Medical & ITE Certifications, 30 Volts 1.2 AmpsManufacturer: XP Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$29.43
5
$28.54
10
$27.67
25
$26.50
100
$24.72
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
30Vdc
Output Max Current:
1.2 Amps
Max Power:
36 Watts
Known Country of Origin:
China
Features
XP Power AMF36US30 wall plug-in power adaptor with interchangeable AC plugs
AC input range: 80~264Vac
Operating temperature: 0~+60°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
2xMOPP
Suitable for BF application
Safety approval: UL 62368-1 listed
Low leakage current ≤50µA
Energy Efficiency Level VI
Class II
No load power consumption ≤0.075 Watts
Operation up to 5000m altitude
IP22
DC plug type: 2.5 x 5.5 x 11mm center positive
Protections: overvoltage / overload
XP Power 3 year warranty
