Power Worth Searching For
MEA-250A24C H-A

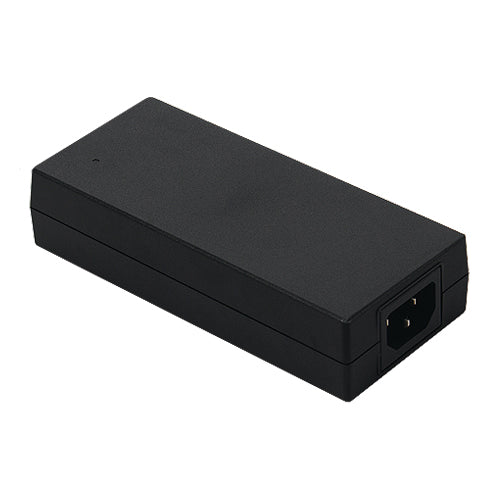

24Vdc 10.42A Desktop Adaptor Medical Type 6 PIN Mini Fit 24 Volts 10.42 AmpsManufacturer: Delta
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
10.42 Amps
Max Power:
250 Watts
Known Country of Origin:
China
Features
Medical desktop power adaptor
AC input range: 90~264Vac
Operating temperature range: -5~+60°C
Medical safety certifications: IEC/EN 60601-1, ANSI/AAMI ES 60601-1, UL 60950-1 Listed
2xMOPP
Suitable for BF applications
IP22
Energy Efficiency Level VI
AC inlet: IEC 320-C14
DC plug type: 3x2 6 Pin mini-fit
Operation up to 5000m altitude
LED indicator for power On
Protections: overload / overvoltage / over temperature / short circuit
DELTA Power 3 year warranty
