GP25A14E-R1B

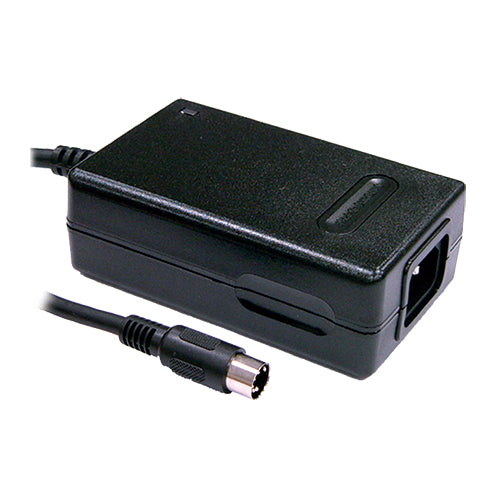

5V; +/-15V; 5F/ClassI(FG) IEC320-C14 Desk Top Power Supply Triple OutputManufacturer: MEAN WELL
View Data Sheet
In Stock: 3 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
2.5 Amps
Output Voltage #2:
15Vdc
Output #2 Max Current:
0.8 Amps
Output Voltage #3:
-15Vdc
Output #3 Max Current:
0.3 Amps
Max Power:
29 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 90~264Vac
Working temperature: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Complies with EISA 2007/DoE
No load power consumption < 0.3W
Energy efficiency level VI
LED indicator for power on
AC inlet: 3 pole IEC320-C14
DC plug type: 5 pin DIN
Protections: over voltage / over load / short circuit
MEAN WELL 3 year warranty
