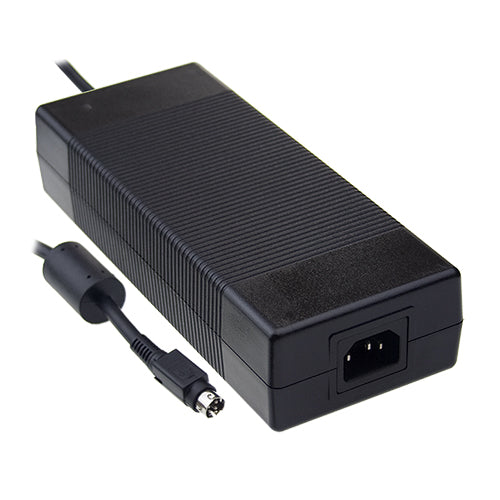

GST220A24-R7B
24Vdc 9.2A; 16AWG/100cm,DIN 4PIN 24Vdc Desk Top Power Supply 3 Pole AC inlet IEC320-C14 24V 9.2AManufacturer: MEAN WELL
View Data Sheet
In Stock: 672 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
24Vdc
Output Max Current:
9.2 Amps
Max Power:
221 Watts
Known Country of Origin:
China
Features
AC input range: 85~264Vac
Operating temperature range: -30~+70°C
Safety approval: UL 62368-1 listed
Complies with EISA 2007/DoE, NRCan, AU/NZ MEPS, EU ErP and CoC Version 5
Energy Efficiency Level VI
No load power consumption <0.15W
Built-in active PFC
LED indicator for power on
Class I, 3 pole AC inlet IEC320-C14
DC plug type: 4 pin DIN with lock (optional plug types available)
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
