GST360A15-C8P

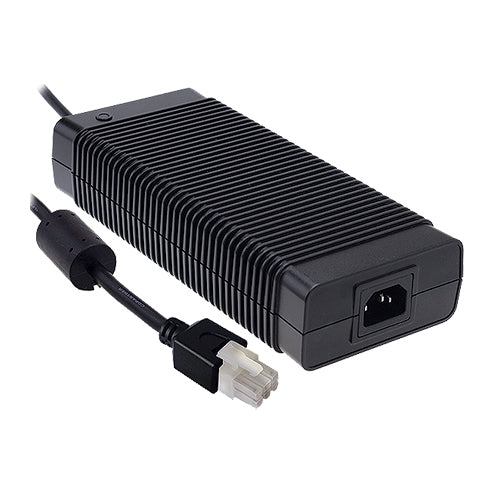

15Vdc 22.7A; 16AWG/100cm,8PIN 15V Desk Top Power Adaptor AC Inlet IEC320-C14 15 Volts 22.7 AmpsManufacturer: MEAN WELL
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$121.84
5
$116.02
10
$110.91
20
$107.71
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
15Vdc
Output Max Current:
22.7 Amps
Max Power:
340 Watts
Known Country of Origin:
China
Features
AC input range: 85~264Vac
Operating temperature: -30~+70°C
Safety approvals: UL 62368-1 listed
Industrial safety certification: IEC/EN 62368-1
Complies with EISA 2007/DoE, NRCan
Peak power: Max 450W for 3 seconds
Class I
No load power consumption: ≤0.5W
Energy Efficiency Level VI
LED indicator for power On
Built-in PFC
AC inlet: IEC 320-C14
DC plug types: Molex C8P 8 pin(12~15V), Molex C6P 6 pin(24~55V)
Optional DC output plugs available
Protections: short circuit / overload / overvoltage / over temperature
MEAN WELL 3 year warranty
