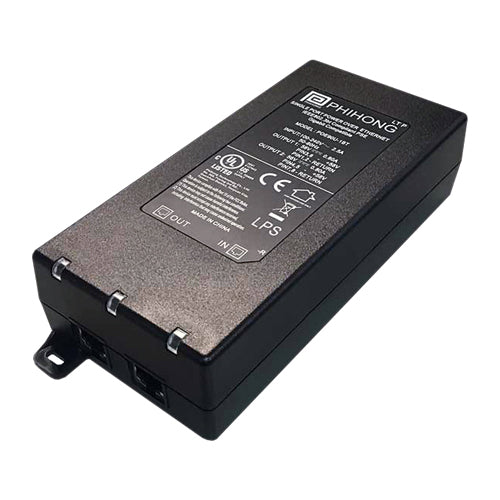

POE90U-1BT6-R
56V Desk Top Midspan Gigabit Compatible Data Speed: 1GManufacturer: Phihong
View Data Sheet
In Stock: 144 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Min Current:
0.015 Amps
Output Max Current:
1.6 Amps
Output Max Power:
90 Watts
Known Country of Origin:
Vietnam
Features
Phihong POE90U-1BT6-R 1G single port Power Over Ethernet active injectors
Phihong 90W single port Power Over Ethernet midspan adaptor
AC input range: 90~264Vac
Operating temperature range: -20~+40°C
Safety approvals: cUL/UL 62368-1, cUL/UL 60950-1 listed
Energy Efficiency Level VI
Fully compliant with IEEE802.3bt standard
Broken wire detection
1 or 5 gigabit compatible
Limited Power Source
Low leakage current ≤3.5µA
LED indicator for power On
AC inlet: IEC320-C14
Data input/PoE output connector: RJ45
Protections: overvoltage / overcurrent / short circuit
Phihong 1 year warranty
