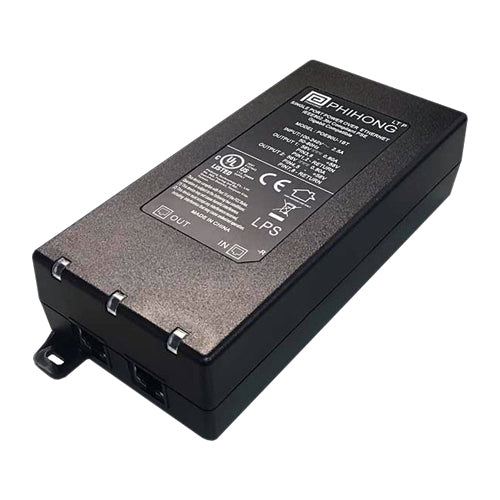

POE90U-560-R
Passive PoE Midspan Data Rate: 1G 56 Volts 1.6 AmpsManufacturer: Phihong
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage:
56Vdc
Output Min Current:
0.015 Amps
Output Max Current:
1.6 Amps
Output Max Power:
90 Watts
Known Country of Origin:
Vietnam
Features
Single Source 4 Pair Power Current Sharing
DoE Level VI Compliant
ErP/Ecodesign Directive 2009/125/EC – Regulation EU 2019/1782 Compliant
4 Pair Power +3,6,4,5 / - 1,2,7,8
Multi-Gigabit Compatible (1G, 2.5G, 5G, 10G)
Diagnostic LEDs
Full Protection OCP, OVP
Limited Power Source (LPS)
1 Year Warranty
