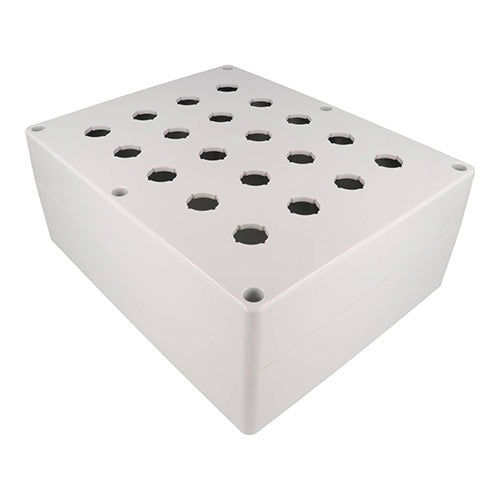

Electronic instrument enclosures, designed for mounting printed circuit boards or DIN rail mounted components

Enclosure color is a light gray (RAL 7035)

The polycarbonate material carries a UL flammability rating of UL94 5VA and is suitable for outdoor use

Lid and mounting holes are located outside of the gasket seal

Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly)

Heavy duty 16 gauge galvanized steel panels available (see chart)

IP66

NEMA 4, 4X, 6, 6P, 12 & 13

UL94 5VA

All stainless steel hardware to avoid corrosion caused by dissimilar metals

Gasket is a preformed, high temperature UL listed silicone rubber Gasket is replaceable

Gasketed lid with two piece tongue & groove construction provides protection against access of oil, dust and water

Internal DIN rail mounting tabs

Threaded (M3) integral brass inserts & standoffs designed for M35 or #6 self tapping screws for PC board or inner panel mounting in all but the smallest size

Vertical PC card guides (for 15 mm thick PC boards) are molded in all but the smallest size
