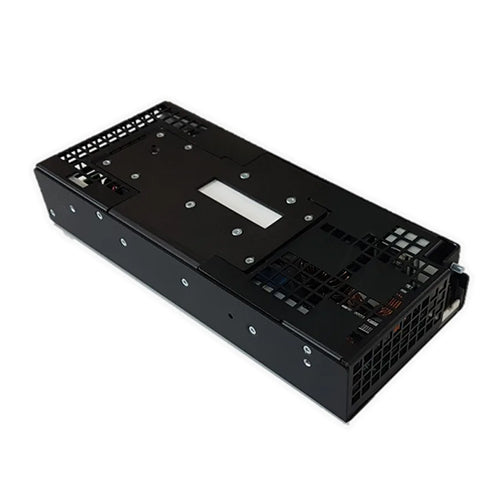

DDP1200-US48-PC
48Vdc Power Supply Low Profile, U-Chassis + Perforated Covers 48 Volts 15.6 Amps 750 WattsManufacturer: Inission Power
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
Click for Quote for higher qty discounts
Specifications
Input Voltage:
85~305Vac
Output Voltage:
48Vdc
Output Max Current:
15.5 Amps
Output Peak Current:
25 Amps
Max Power:
750 Watts
Known Country of Origin:
Tunisia
Features
AC input range: 85~305Vac
Operating temperature: -20~+70°C
Industrial safety certification: IEC/EN 62368-1, UL 62368-1
Active PFC
1U low profile design
750 W rated power (1200 W peak for <10 s)
12V, 0.3A & +5V, 0.72A stand-by outputs
Built-in current sharing and OR-ing for parallel operation and N+1 redundancy
Remote On / Off signal
Power good and remote sense signals
Input inrush current limiting
Operation up to 5,000 meters
Protections: over voltage / over current / short circuit / over temperature
Inission 3 year warranty
