Power Worth Searching For

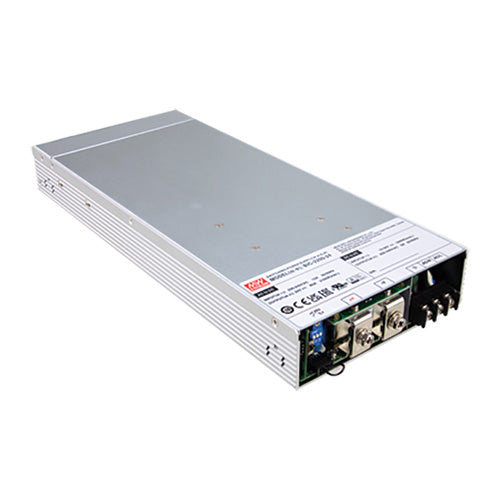

BIC-2200U-24CAN
A/D +24Vdc 90A ; D/A +24Vdc 177A Bidirectional Power Supply with Energy Recycle, CANBus VersionManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
19~28Vdc
Output Voltage:
110~305Vac
Max Power:
1720 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 110~305Vac
DC/AC Output Power: 1720W (180-305Vac) / 1370W (110-120Vac)
Operating temperature range: -20~+70°C
Current sharing up to 5 units
Full digital design
Low profile fits 1U applications
Charge battery from AC grid and recycle DC energy back into AC grid
1ms switching time between AC/DC and DC/AC
Built-in remote On/Off
Built-in fans
Built-in PFC
DC OK signal
High efficiency
Built-in 12V/0.5A auxiliary output
Force charging and discharging mode
CANBus Protocol
Protections: Anti-islanding, AC fail, DC overvoltage / overload / over current / short circuit /over temperature
MEAN WELL 5 year warranty
