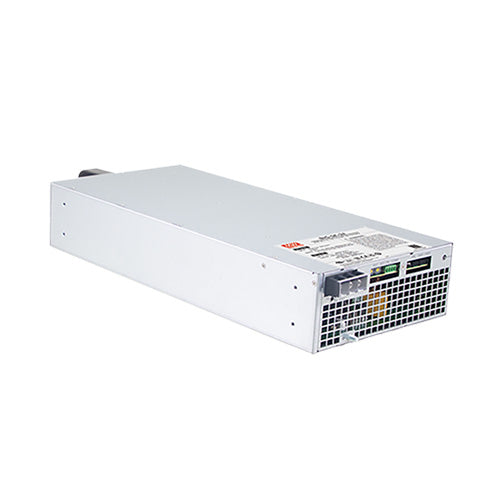

BIC-5K-48
A/D +48Vdc 104A ; D/A +48Vdc 114A Bidirectional Power Supply with Energy Recycle, CANBus VersionManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$1,981.23
5
$1,887.38
10
$1,803.96
20
$1,751.82
Click for Quote for higher qty discounts
Specifications
Input Voltage:
38~66Vdc
Output Voltage:
180~305Vac
Max Power:
5000 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 180~305Vac
DC/AC Output Power: 5000W
Operating temperature range: -30~+70°C
Industrial safety certification: CB/TUV 62368-1, UL 62368-1
Parallel operation up to 30KW (5+1 unit)
Support CANBus protocol communication
Charge battery from AC grid and recycle DC energy back into AC grid
1ms switching time between AC/DC and DC/AC
Built-in remote On/Off
Built-in fans
DC OK signal
5V auxiliary output
PFC
Conformal coating
Protections: Anti-islanding, AC fail, DC overvoltage / overload / over current / over temperature
MEAN WELL 5 year warranty
