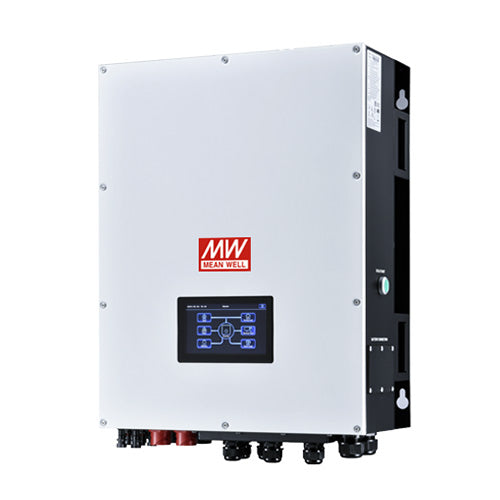

ES-HSI-12K
12KW Three-phase Energy Storage Inverter, O/P 380VAC. 3L/N/PEManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
Click for Quote for higher qty discounts
Specifications
Input Voltage:
150~850Vdc
Output Voltage:
380/400VAC 3-Phase
Max Power:
12000 Watts
Known Country of Origin:
China
Features
12KW Three-phase Energy Storage Inverter
AC Input range: 170~290Vac per Phase
Operating temperature range: -25~+60°C
Output Voltage: 380/ 480Vac 3-Phase
Input power factor >0.99
Dual MPPT inputs, with a maximum input current of 27A per string
HMI LCD display for easy operation and control
Built-in BMS communication port (RS485)
Built-in WiFi communication, supporting APP mobile monitoring
Supports both on-grid and off-grid applications
Generator connection supported
Parallel operation of up to 6 units supported
IP66 protection rating
Programmable power supply priority for PV, battery, or grid
MEAN WELL 5 year warranty
