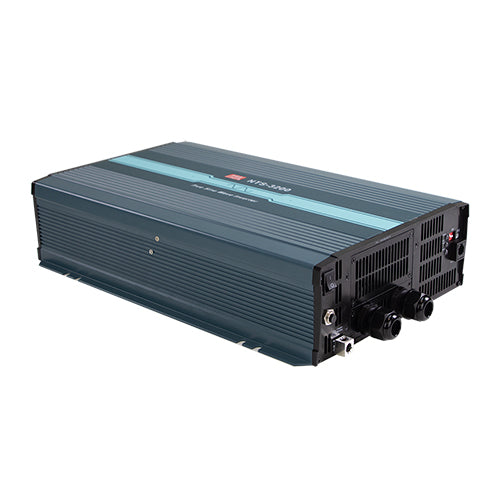

NTS-3200-124US
24Vdc 150A DC/AC Inverter AC Output Receptacle: US Plug, 110VacManufacturer: MEAN WELL
View Data Sheet
In Stock: 2 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$948.28
3
$896.31
10
$860.94
20
$838.86
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
20~33Vdc
Output Voltage:
110VAC (100/110/115/120)
Max Power:
3200 Watts
Known Country of Origin:
China
Features
True sine wave output (THD<3%)
Operating temperature range: -25~+70°C
Safety certification: EN 62368-1, UL 62368-1
Safety certification: UL458 (for 112/124/148 type TB only)
High surge output power up to 6000W
Built-in temperature controlled fan
On/Off switch
Built-in remote On/Off control
Front panel indicator for: operation status
North American AC receptacle standard (Type-US)
Universal terminal block version (Type-TB)
No load power dissipation ≤1.7 Watts in standby mode
Conformal coated
AC output voltage is factory preset at 110Vac (100 / 110 / 115 / 120Vac user selectable by DIP Switch)
Input protections: reverse polarity / DC low alarm / DC low shutdown / overvoltage
Output protections: short circuit / overload / over temperature
MEAN WELL 3 year warranty
