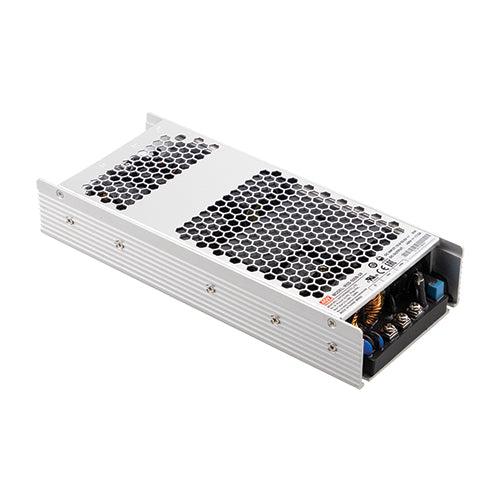

RSD-500C-24
28.8-67.2VDC O/P +24V19.2A, Enclosed DC/DC Converter Wide 2:1 Input Range, 500 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 40 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$338.15
5
$322.19
10
$307.93
20
$299.03
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
33.6~67.2Vdc
Output Voltage:
24Vdc
Output Max Current:
19.2 Amps
Max Power:
460.8 Watts
Known Country of Origin:
China
Features
Wide 2:1 input range
Operating temperature: -40~+80°C
Industrial safety certification: IEC 62368-1, UL 62368-1
Compliance to EN 50155 railway standard
I/O isolation: 4000Vdc
Low profile fits 1U applications
Withstands 5G vibration
LED indicator for power On
Fanless power supply
Convection cooled
Adjustable output voltage
Operation up to 5000m altitude
Protections: overvoltage / overload / over temperature / reverse polarity / undervoltage-lockout
MEAN WELL 3 year warranty
