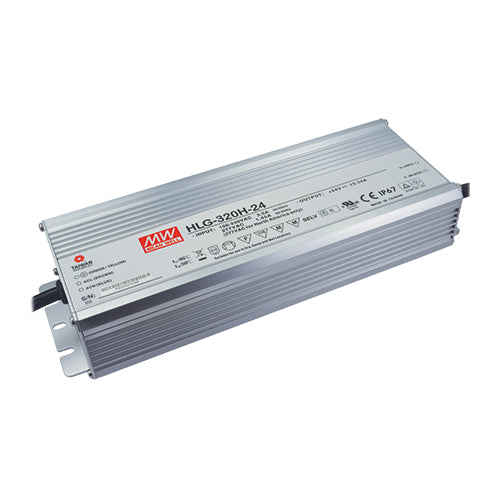

HLG-320H-24
24Vdc 13.34A LED Driver, IP67, PFC Harsh Environment, Metal Case 24V 13.34AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$110.52
5
$105.34
10
$100.63
20
$97.75
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
13.34 Amps
Output Current (CC mode):
13.34 Amps
Constant Current Operating Range:
12~24Vdc
Max Power:
320 Watts
Known Country of Origin:
Taiwan
Features
Full range AC input: 90~305Vac
Operating case temperature: -40~+90°C
UL8750 type HL LED power supply
Meet 4kV surge immunity level (IEC61000-4-5)
Built-in active PFC, THD <20%
IP67 durable aluminium enclosure
High efficiency
Long life
Protections: short circuit / over current / over voltage / over temperature
Applications: LED electric display, lighting, LED street lighting and indoor/outdoor lighting
MEAN WELL 7 year warranty
