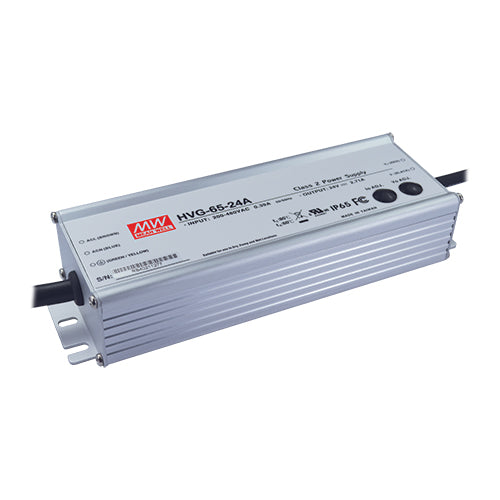

HVG-65-24A
I/P 180~528Vac O/P 24V 2.71A 24VDC LED Power Suppy, IP65 Wide Input Range: 180~528 VAC Operates: CV or CC ModeManufacturer: MEAN WELL
View Data Sheet
In Stock: 23 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
180~528Vac
Output Voltage (CV mode):
24Vdc
Output Max Current (CV mode):
2.71 Amps
Output Current (CC mode):
2.71 Amps
Constant Current Operating Range:
14.4~24Vdc
Max Power:
65 Watts
Known Country of Origin:
China
Features
Wide range AC input: 180~528Vac
Working case temperature: -40~+80°C
Safety approval: UL8750
Type HL for use in Class I, Division 2 hazardous (Classified) location
Output voltage and constant current level can be adjusted through internal potentiometers
Class 2
Built-in active PFC
Durable metal enclosure
High efficiency
Protections: short circuit, over temperature, over current, over voltage
Applications: LED street lighting, LED high bay lighting, LED office lighting and other indoor/outdoor lighting
MEAN WELL 5 year warranty
