LPF-25-36

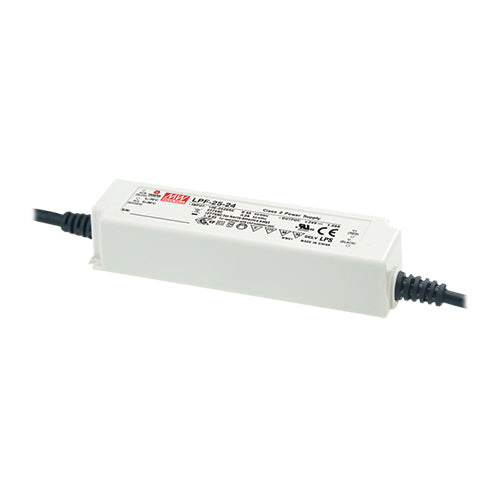

36V 0.7A 36Vdc LED Driver IP67, Class II, Class 2, PFC 36V 0.7AManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
36Vdc
Output Max Current (CV mode):
0.7 Amps
Output Current (CC mode):
0.7 Amps
Constant Current Operating Range:
19.8~36Vdc
Max Power:
25 Watts
Known Country of Origin:
China
Features
Full range AC input: 90~305Vac
Operating temperature range: -35~+70°C
UL8750 LED Power Supply, Class 2
Class II AC input (two wires-no FG connection)
Built-in active PFC
Fully insulated plastic case with 94V-0 fire prevention level
High efficiency
IP67
Protections: short circuit / over current / over voltage / over temperature
MEAN WELL 5 year warranty
