LPF-60D-42

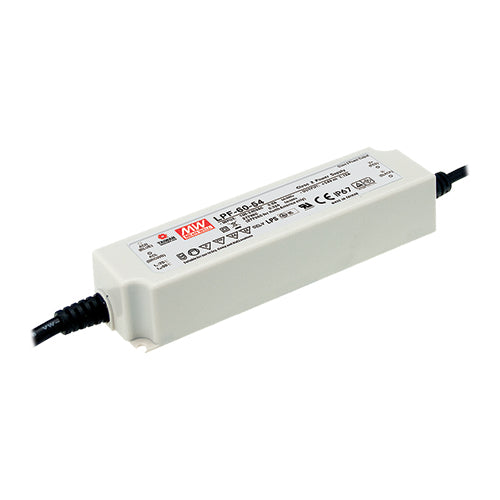

42V 1.43A LED Driver, Dimmable IP67, Class II, Class 2, PFC Plastic CaseManufacturer: MEAN WELL
View Data Sheet
In Stock: 144 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~305Vac
Output Voltage (CV mode):
42Vdc
Output Max Current (CV mode):
1.43 Amps
Output Current (CC mode):
1.43 Amps
Constant Current Operating Range:
25.2~42Vdc
Max Power:
60 Watts
Known Country of Origin:
China
Features
AC input range: 90~305Vac
Operating temperature range: -40~+70°C
UL8750 LED Driver, Class 2
Class II AC Input (two wires-no FG connection)
Built-in active PFC
Fully insulated plastic case with 94V-0 fire prevention level
High efficiency
IP67
Compatible dimmer types: 1-10Vdc dimmer, 10V PWM dimmer, or resistance dimmer
Protections: short circui / over current / over voltage / over temperature
MEAN WELL 5 year warranty
