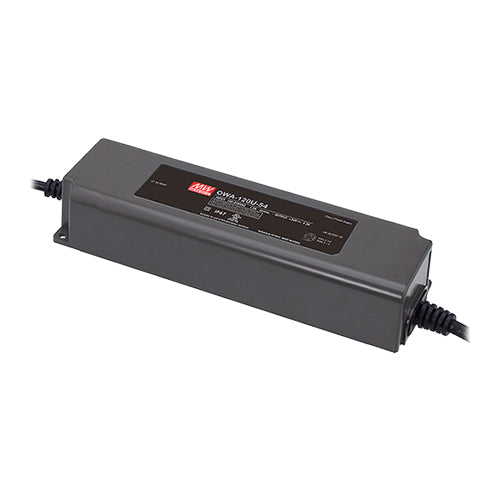

OWA-120U-42
42Vdc 2.9A, 42 Volts External LED Power Supply UL8750 Listed 42 Volts 2.9AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage (CV mode):
42Vdc
Output Max Current (CV mode):
2.9 Amps
Output Current (CC mode):
2.9 Amps
Constant Current Operating Range:
25.2~42Vdc
Max Power:
121 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Wide operating temperature: -40~+70°C
AC plug: NEMA 1-15p male
Built in active PFC
Total Harmonic Distortion: THD < 20% when output loading is ≥ 60%
Class II
Energy efficiency level VI
Operates in constant current or constant voltage mode
Fully enclosed plastic case (UL 94V-0)
High efficiency
IP67 (power supply plastic enclosure only) approved
NRCan compliant
No load power consumption <0.15W
Protections: short circuit / over load / over voltage / over temperature
Applications: residential & commercial LED fixtures
MEAN WELL 5 year warranty
