OWA-90U-48-P1M

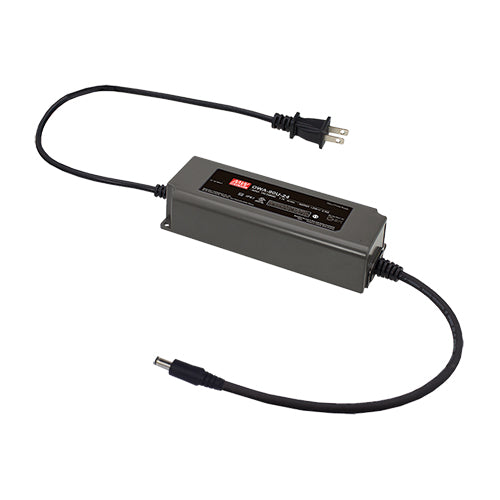

48Vdc 1.88A, 48 Volts External LED Power Supply UL8750 Listed, Class 2 Power 48 Volts 1.88AManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage (CV mode):
48Vdc
Output Max Current (CV mode):
1.88 Amps
Output Current (CC mode):
1.88 Amps
Constant Current Operating Range:
28.8~48Vdc
Max Power:
90 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Wide operating temperature: -40~+70°C
AC plug: NEMA 1-15p male
DC output connector: 2.5mm x 5.5mm, center positive
Built in active PFC
Total Harmonic Distortion: THD < 20% when output loading is ≥ 60%
Class 2 power unit
Class II
Energy efficiency level VI
Operates in constant current or constant voltage mode
Fully enclosed plastic case (UL 94V-0)
High efficiency
IP67 (power supply plastic enclosure only) approved
NRCan compliant
No load power consumption <0.15W
Protections: short circuit / over load / over voltage / over temperature
Applications: residential & commercial LED fixtures
MEAN WELL 5 year warranty
