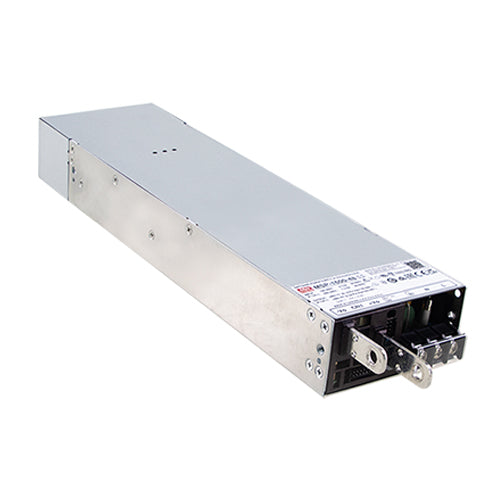

MSP-1600-36
36Vdc, 44.5A, Medical and Multi-Industry Enclosed Power Supply, 36 Volts 44.5 AmpsManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$632.94
5
$602.96
10
$576.31
20
$559.65
Click for Quote for higher qty discounts
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
44.5 Amps
Max Power:
1602 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 85~264Vac
Operating temperature range: -40~+85°C
Medical safety certification: ANSI/AAMI ES60601-1
2xMOPP
BF Rated
Output voltage 15~115% programmable
Extremely low leakage current: <500μA
Industrial safety certification: UL 61558-1/-2, UL 61010-1
Class B conducted and radiated emissions
CANBus protocol built-in
Built-in PFC
Built-in constant current limiting
Built-in remote ON/OFF control/ Remote Sense/ DC OK signal/ OTP alarm signal/ Auxiliary 12Vdc
Conformal Coating
Built-in intelligent fan speed control, low noise <43dB
Mean Well 5 year warranty
