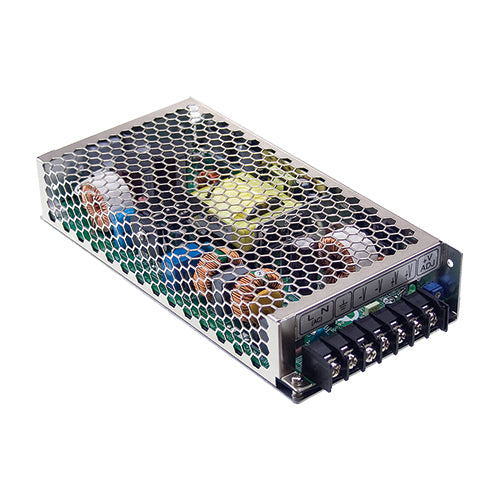

HRPG-200-36
36Vdc 5.7A PFC Power SupplyManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
85~264Vac
Output Voltage:
36Vdc
Output Max Current:
5.7 Amps
Max Power:
205 Watts
Known Country of Origin:
China
Features
AC input range: 85~264Vac
Operating temperature: -40~+70°C
Safety approvals: UL 62368-1 and TUV EN 62368-1
Dim:199mm x 98mm x 38mm
No load power consumption <0.5W
Cooling by free air convection
Withstand 300Vac surge input for 5 seconds
Built-in active PFC function
Built-in constant current limiting circuit
Built-in remote sense function
Built-in 5V / 0.3A standby output
LED indicator for power on
1U low profile
Protections: over load / over voltage
MEAN WELL 5 year warranty
