Power Worth Searching For

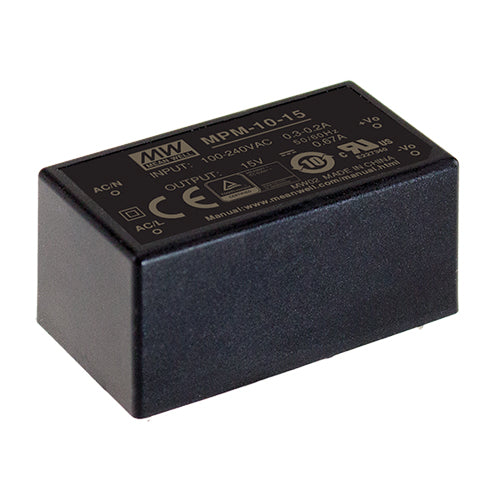

MPM-10-15
15Vdc 0.67A Medical Power Supply PCB Mount, EncapsulatedManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
15Vdc
Output Max Current:
0.67 Amps
Output Peak Current:
0.74 Amps
Max Power:
10 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+85°C
Medical safety approvals: ANSI/AAMI ES 60601-1 & IEC/EN 60601-1
2xMOPP
Extremely low leakage current <80µA
Suitable for BF applications
Low no load power consumption <0.075W
Class II (No FG)
No minimum load required
Withstand 5G anti-vibration
Compact size: 1.8x1 inches
Protections: short circuit /over load / over voltage / over temperature
MEAN WELL 3 year warranty
