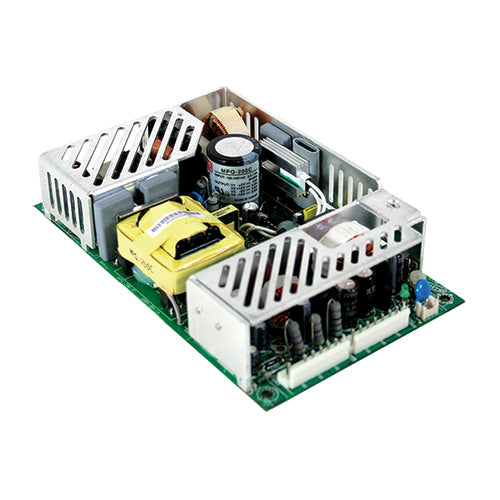

MPQ-200B
Medical Power Supply Quad OutputManufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$113.15
5
$107.67
10
$102.99
20
$100.05
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
15 Amps
Output Voltage #2:
12Vdc
Output #2 Max Current:
7 Amps
Output Voltage #3:
-5Vdc
Output #3 Max Current:
2 Amps
Output Voltage #4:
-12Vdc
Output #4 Max Current:
2 Amps
Max Power:
200 Watts
Known Country of Origin:
China
Features
AC input range: 90~264Vac
Operating temperature: -20~70°C
Medical safety approval: ANSI/AAMI ES60601-1, IEC60601-1
2xMOPP (means of patient protection)
Low leakage current <180µA
Approximate power: 140W with free air convection cooling and 200W with 25CFM forced air cooling
Built-in remote On/Off control, remote sense function, power good and fail signal
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 3 year warranty
