PPT-125D

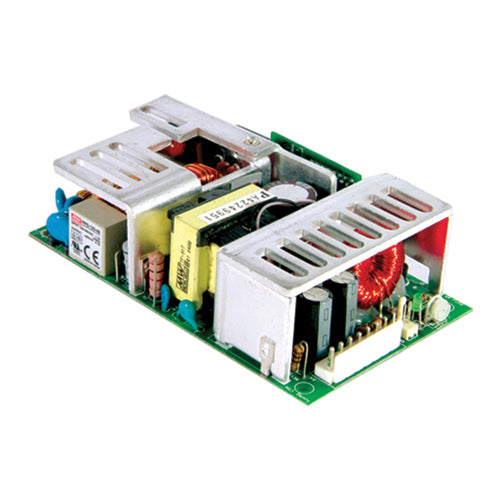

5V7A +24V2.5A +12V0.5A Triple Output Power Supply Open Frame Type with PFC 3"x5"Manufacturer: MEAN WELL
View Data Sheet
Availability: Contact Us
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
8.75 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
3.13 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
0.63 Amps
Max Power:
126 Watts
Known Country of Origin:
China
Features
Built-in active PFC function
LED indicator for power On
Protections: short circuit / over load / over voltage
MEAN WELL 3 year warranty
PPT-125D
5V7A +24V2.5A +12V0.5A Triple Output Power Supply Open Frame Type with PFC 3"x5"Manufacturer: MEAN WELL
View Data Sheet
Specifications
Input Voltage:
90~264Vac
Output Voltage #1:
5Vdc
Output #1 Max Current:
8.75 Amps
Output Voltage #2:
24Vdc
Output #2 Max Current:
3.13 Amps
Output Voltage #3:
12Vdc
Output #3 Max Current:
0.63 Amps
Max Power:
126 Watts
Known Country of Origin:
China
Features
