RPS-120S-24

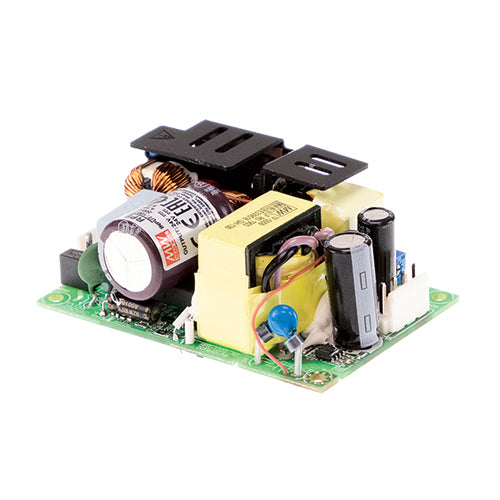

24Vdc 5A 24Vdc Medical Power Supply 2"x3" Open Frame, 120W 2xMOPP, BF RatedManufacturer: MEAN WELL
View Data Sheet
In Stock: 9 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
5 Amps
Max Power:
120 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+85°C (with derating)
Safety approvals: ANSI/AAMI ES60601-1, EN/IEC60601-1
2xMOPP, BF rated
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in PFC
Low leakage current <150µA
No load power consumption <0.3W
Peak power 150W (10 seconds)
High efficiency
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
