Power Worth Searching For
RPS-30-24

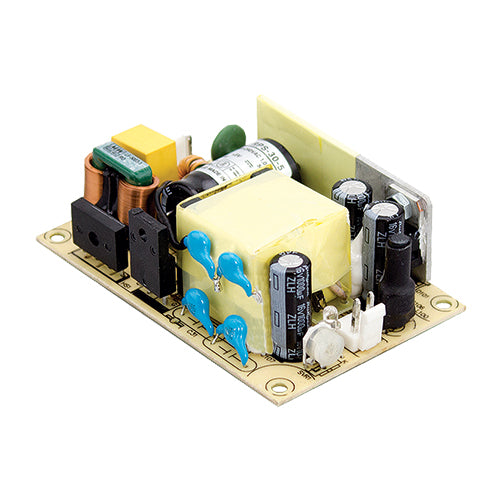

24Vdc 1.25A 24V Medical Power Supply 2x3" Open Frame 24V 1.25AManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Specifications
Input Voltage:
80~264Vac
Output Voltage:
24Vdc
Output Max Current:
1.25 Amps
Output Peak Current:
1.375 Amps
Max Power:
30 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C
Medical safety approval: ANSI/AAMI ES60601-1, TUV EN60601-1,
EN60601-1-1
Isolation level: 2xMOPP
Suitable for BF applications with appropriate system consideration
Class II (without FG) installations
Low leakage current <100µA
No load power consumption <0.1W
LED indicator for power On
Peak load
Protections: short circuit / overload / over voltage
MEAN WELL 3 year warranty
