RPS-500-48

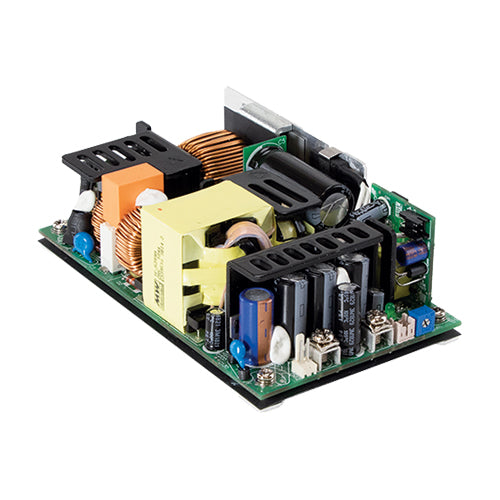

48Vdc 10.4A 500W Medical Power Supply 3"x5" Open Frame 48V, 10.4AManufacturer: MEAN WELL
View Data Sheet
In Stock: 4 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$110.56
5
$105.33
10
$100.70
20
$97.73
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
80~264Vac
Output Voltage:
48Vdc
Output Max Current:
10.4 Amps
Max Power:
499 Watts
Known Country of Origin:
China
Features
AC input range: 80~264Vac
Operating temperature: -30~+70°C (with derating)
Safety approvals: ANSI/AAMI ES60601-1, EN/IEC60601-1
2xMOPP, BF rated
EMI Class B for Class I (with FG) and Class A for Class II (without FG)
Built-in PFC
Low leakage current <220µA
Built-in 5Vdc standby output
Built-in 12V/0.5A fan supply
No load power consumption <0.5W by PS-ON control
LED indicator for power on
Output power = 320W convection cooled, 500W with 25CFM forced air cooling
Peak power 550W (3 seconds)
Power good/fail signals
Remote sense function
High efficiency
Protections: short circuit / overload / over voltage / over temperature
MEAN WELL 3 year warranty
