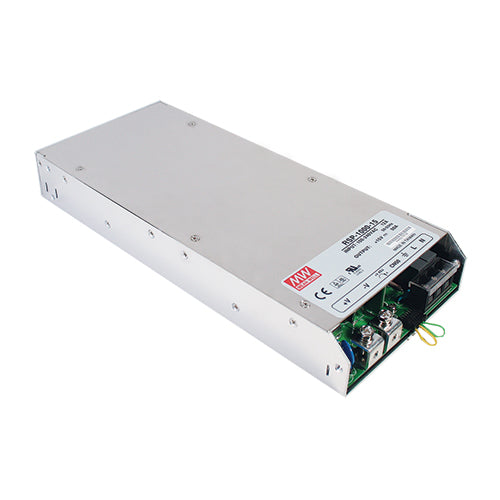

RSP-1000-24
24Vdc 40A, 24Volts PFC Power Supply Parallel Function 24V 40A, 1000 WattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 134 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$267.90
5
$255.20
10
$243.90
20
$236.90
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
90~264Vac
Output Voltage:
24Vdc
Output Max Current:
40 Amps
Max Power:
960 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 90~264Vac
Operating temperature: -20~+60°C
Safety standard: UL62368-1
Forced air cooling via built-in DC fan
Current sharing up to 4 RSP-1000-24 4,000W(3+1)
Built-in remote On/Off control, DC OK signal and remote sense function
5V/0.5A auxiliary output
Output voltage can be externally trimmed via an external DC source signal or resistor between 40~110% of the rated output voltage
Protections: short circuit / over load / over voltage / over temperature
MEAN WELL 5 year warranty
