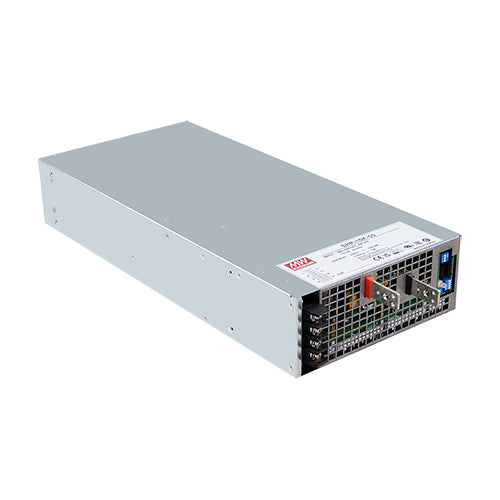

SHP-10K-55
55Vdc 131A, 7,200W Power Supply High Voltage, Air Cooled 55V 131A, 10kWattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 22 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$3,277.50
5
$3,122.25
10
$2,984.25
20
$2,898.00
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
340~530Vac Three Phase
Output Voltage:
55Vdc
Output Max Current:
131 Amps
Max Power:
7200 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 3 Phase 3-wire Δ or 3 Phase 3-wire Y 340~530Vac
Operating temperature range: -30~+70°C
Industrial safety certification: EN 62368-1, UL 62368-1
Built-in active PFC
Water cooled (L) or forced air cooling versions
Current sharing up to 4 SHP-10K units
3+1 parallel operation (up to 4 units can be connected in parallel)
Forced air cooling by two built-in DC fans
Built-in remote On/Off
DC OK signal
High efficiency
Built-in 12V/1A auxiliary output - Only for Remote On/Off control (Auxiliary voltage output is not controlled by the Remote On/Off function)
Output voltage can be trimmed between 50~120% of the rated output voltage
Output constant current can be trimmed between 20~100% of the rated output current
Alarm signal output via relay contact
Protections: short circuit / overload / overvoltage / over temperature / fan failure
MEAN WELL 5 year warranty
