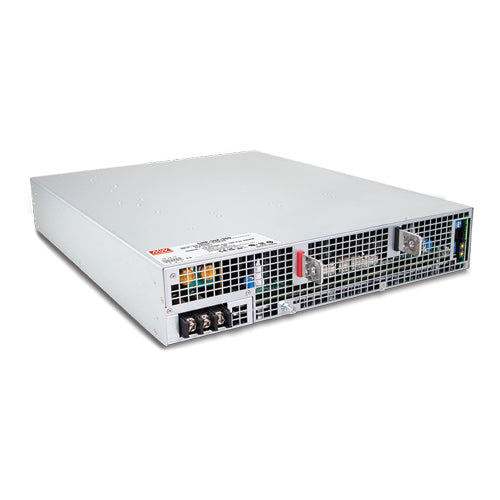

SHP-30K-380
380Vdc 79A, 30,000W Power Supply, O/P +380V79A, 30kWattsManufacturer: MEAN WELL
View Data Sheet
In Stock: 1 can ship immediately
i
Lead time for quantities greater than shown can be as short as 1 week. Call or submit an online Request for Quote for lead time.
Lead time for quantities greater than shown, contact us
Quantity
Unit Price
1
$7,334.00
5
$6,986.60
10
$6,677.80
20
$6,484.80
REQUEST a QUOTE for higher qty discounts
Specifications
Input Voltage:
340~530Vac Three Phase
Output Voltage:
380Vdc
Output Max Current:
79 Amps
Max Power:
30000 Watts
Known Country of Origin:
Taiwan
Features
AC input range: 3 Phase 3-wire without Neutral / 340~530VAC
Operating temperature range: -30°~+70°C
Industrital safety certification: UL 62368-1
Built-in active PFC
Forced Air cooling
Built-in CANbus/Optional PMBus/MODbus-RTU/RS-485 protocol
Output voltage and constant current level programmable
Active current sharing up to 12 units (285KW) and more
Forced air cooling by 4 built-in DC fans
Built-in remote On/Off
DC OK signal
High efficiency
Built-in 12V/1.5A auxiliary output - Only for Remote On/Off control (Auxiliary voltage output is not controlled by the Remote On/Off function)
Output voltage can be trimmed between 50~120% of the rated output voltage
Output constant current can be trimmed between 1~100% of the rated output current
Protections: short circuit / overload / overvoltage / over temperature / fan failure
MEAN WELL 5-year warranty
